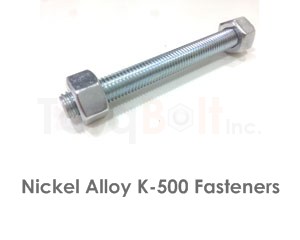

Monel K-500 Fasteners Specification

TorqBolt manufactures PED certified high yeild intergranular corossion resistant Inconel,Incoloy and Nickel alloy viz Monel K-500 Fasteners .

Monel Alloy K-500 is a precipitation- hardened Nickel-copper alloy that merges the corrosion resistance of Monel alloy 400 with higher strength and hardness. It possesses low permeability and is non-magnetic at temperatures as low as -150 degrees F (-101 Degrees C). Widely used for various industry applications such as pump shafts, oil-well tools and instruments, doctor blades and scrappers, spring valve trim, fasteners and marine propeller shafts etc.

Monel K-500 Fasteners Properties

Chemical Properties
CMnSSiCrTiAlFeNi
0.25 Max1.50 Max0.010 Max0.50 Max63.0-70.00.35-0.852.30-3.152.00 MaxBALANCE

Mechanical Properties
Yeild strengthTensile strengthElongationHardness
Min 0.2% MpaMin MpaMin %HRB
6209002024-37

Physical Properties
DensityElastic ModulusMean Coefficient of ThermalThermal ConductivitySpecific HeatMelting Point
(Kg/m 3 )(Gpa)Expansion( μ m/m/°C)(W/m.K)0-100°C
8.4417911.212.4297.32400-2460

Heat Treatment
Solution annealed and precipitation hardened

Equivalent Designation
ASTM/ASME AISI UNS British Standard Werkstoff No. En Name Swedish(SS) JIS(SUS)
N05500 2.4375

Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.

Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.

Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.

Hexagon Bolts

  • ANSI B18.2.1
  • ANSI B18.2.3.1M
  • DIN 931
  • DIN 933
  • BS 1768
  • UNI 5731
  • UNI 5737
  • UNI 5739
  • ISO 4014
  • ISO 4017
  • BS 1769
  • BS 3692

Socket/Slotted Set Screws

  • DIN 913
  • DIN 914
  • DIN 915
  • DIN 916
  • DIN 551
  • DIN 553
  • DIN 438
  • BS 4168

Socket/Slotted Countersunk Screws

  • DIN 963
  • DIN 7991
  • BS 4168
  • BS 1981
  • BS 483
  • BS 2470

Socket Cap Screws

  • ANSI B18.3
  • B18.3.1M
  • DIN 912
  • DIN 6912
  • DIN 7984
  • ANSI B18.3
  • ISO 4762
  • UNI 5931
  • BS 2470
  • BS 4168

Stud Bolts

  • ASME B18.2.1
  • DIN 976
  • DIN 938
  • DIN 939
  • DIN 2510
  • BS 4439
  • BS 2693
  • BS4882

Nuts

  • ANSI B18.2.2
  • ANSI B18.2.4.6M
  • DIN 934
  • DIN 936
  • BS 1768
  • BS 1769
  • BS 1083
  • BS 3692
  • ISO 4032
  • ISO 4033
  • ISO 4035
  • UNI 5587
  • UNI 5588
  • UNI 5589

Washers

  • ASME B18.22.1
  • ASTM F436
  • ISO 7089
  • DIN 125
  • DIN 9021
  • BS 4320
  • BS 3410
  • DIN 127
  • BS 4464
  • BS 1802
  • UNI 6952
