What material grade does 15-5 ph stainless steel Fasteners use?

15-5 ph stainless steel Fasteners are manufactured per the applicable ASTM, ASME, DIN, or ISO specification for the material grade. TorqBolt provides material test certificates (MTC) per EN 10204 3.1 or 3.2 with every supply.

What sizes are available for 15-5 ph stainless steel Fasteners?

TorqBolt manufactures 15-5 ph stainless steel Fasteners in metric sizes M6 to M100 and imperial sizes 1/4" to 4" diameter, with custom lengths from 10mm to 3000mm. Non-standard sizes are available on request.

Are 15-5 ph stainless steel Fasteners NACE MR0175 / ISO 15156 certified?

Yes, 15-5 ph stainless steel Fasteners can be supplied with NACE MR0175 / ISO 15156-2/3 sour service certification when specified at order. Material certificates and test reports are provided.

What is the typical delivery time for 15-5 ph stainless steel Fasteners?

Standard stock items ship in 1-2 weeks. Custom manufactured 15-5 ph stainless steel Fasteners typically ship in 4-6 weeks depending on quantity, material availability, and certification requirements.

Do you provide third-party inspection for 15-5 ph stainless steel Fasteners?

Yes, third-party inspection by TUV, Lloyd's Register, BV, DNV, SGS, and Intertek is available upon request for 15-5 ph stainless steel Fasteners. Witness testing and stage inspections can be arranged.

15-5 ph stainless steel Fasteners Supplier

15-5 ph stainless steel Fasteners Specification

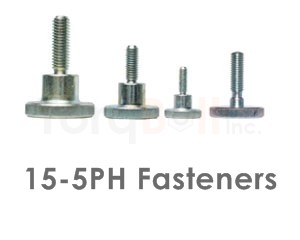

15-5 ph stainless steel Fasteners like Heavy Hex Bolts Screws Nuts Washers

Alloy 15-5 PH is also known as XM-12 .This alloy has excellent corrosion resistance .

15-5 ph stainless steel Fasteners Properties

Equivalent Designation
ASTM/ASME	AISI	UNS	British Standard	Werkstoff No.	En Name	Swedish(SS)	JIS(SUS)
–	–	S15500		1.4545	–	–	–

TorqBolt manufactures 15 5 PH Stainless Steel Fasteners via cold forging, hot forging and CNC machining. Sizes range from M1.0 to M100 (metric) and 1/16" to 4" (imperial). Available in coarse, fine, UNC, UNF, UN, BSW and acme threads with half, full or double-end thread configurations. Each 15 5 PH Stainless Steel Fasteners batch is supplied with EN 10204 3.1 or 3.2 material test certificates.

Hexagon Bolts

ANSI B18.2.1
ANSI B18.2.3.1M
DIN 931
DIN 933
BS 1768
UNI 5731
UNI 5737
UNI 5739
ISO 4014
ISO 4017
BS 1769
BS 3692

Socket/Slotted Set Screws

DIN 913
DIN 914
DIN 915
DIN 916
DIN 551
DIN 553
DIN 438
BS 4168

Socket/Slotted Countersunk Screws

DIN 963
DIN 7991
BS 4168
BS 1981
BS 483
BS 2470

Socket Cap Screws

ANSI B18.3
B18.3.1M
DIN 912
DIN 6912
DIN 7984
ANSI B18.3
ISO 4762
UNI 5931
BS 2470
BS 4168

Stud Bolts

ASME B18.2.1
DIN 976
DIN 938
DIN 939
DIN 2510
BS 4439
BS 2693
BS4882

Nuts

ANSI B18.2.2
ANSI B18.2.4.6M
DIN 934
DIN 936
BS 1768
BS 1769
BS 1083
BS 3692
ISO 4032
ISO 4033
ISO 4035
UNI 5587
UNI 5588
UNI 5589

Washers

ASME B18.22.1
ASTM F436
ISO 7089
DIN 125
DIN 9021
BS 4320
BS 3410
DIN 127
BS 4464
BS 1802
UNI 6952

Surface Treatments & Coatings

Electro Less Nickel Plating Electro Cadmium Plating Dacromet 320 500 Coating Pickled Passivated Fasteners Silver Plating Nickel Plating Electro Zinc Cobalt Plating Electro Zinc Nickel Plating Ptfe Fluorocarbon Coating Aluminizing Ceramic Filled Fluorocarbon Coating

Related Products

15 5 PH Stainless Steel Fasteners — Material Overview & Form Factors

15 5 PH Stainless Steel is a high-performance alloy used wherever standard fasteners cannot meet the corrosion, temperature, or strength envelope. TorqBolt manufactures the full 15 5 PH Stainless Steel fastener range — bolts, nuts, screws, washers, studs, and custom forgings — under one ISO 9001:2015 quality system, with PED 2014/68/EU module-H qualification for pressure-equipment service.

Where 15 5 PH Stainless Steel Excels

15 5 PH Stainless Steel is specified in oil & gas wellhead components, refinery heat exchangers, petrochemical reactors, power-generation turbines, marine offshore platforms, and pharmaceutical / food-grade processing. Its corrosion resistance, high-temperature strength, and weldability make it the default for service conditions outside the carbon and standard-stainless envelope.

Form Factors Available

Bolts — hex, heavy hex, socket, button, countersunk; M6–M100 / 1/4"–4"

Nuts — standard, heavy, jam, locking variants (nyloc, all-metal, flange)

Screws — cap, machine, set, shoulder, self-tapping; all common drive types

Washers — plain, spring, lock, Belleville, fender, tab

Studs & threaded rod — ASTM A193 / A320 / A453 / A540

Custom forgings — rings, blanks, shaped components to drawing

Standards & Certification

15 5 PH Stainless Steel fasteners are supplied with EN 10204 3.1 (mill cert) or 3.2 (third-party witnessed) material test reports as standard. Additional certification packages: NACE MR0175 / ISO 15156 (sour service), NORSOK M-650 (subsea / topside), API 6A (wellhead), API 20E (subsea bolting), PED 2014/68/EU (pressure equipment). Third-party inspection by TUV, Lloyd's, BV, DNV, SGS, and Intertek arrangeable on order.

Lead Time & Sizes

Stock items in standard 15 5 PH Stainless Steel fastener sizes ship in 1–2 weeks; custom-manufactured items in 4–6 weeks subject to material availability. Diameters M6–M100 and 1/4"–4", lengths 10 mm–3000 mm covered in-house; oversize / non-standard sizes quoted to specification.

Precipitation-Hardening (PH) Stainless Steels

Precipitation-hardening (PH) stainless steels combine the corrosion resistance of austenitic stainless with the high strength of martensitic grades. A two-step heat treatment — solution anneal followed by ageing at 480-620°C — precipitates Cu, Ti, or Al-rich phases that lock the matrix at tensile strengths up to 1300 MPa with minimal distortion.

17-4 PH (UNS S17400 / AMS 5643) is the dominant grade: Cu-precipitation hardened, with corrosion roughly equivalent to AISI 304. Five standard ageing conditions H900 (highest strength), H925, H1025, H1075, H1150 trade strength against fracture toughness. 15-5 PH (S15500) is the through-thickness-tougher variant with reduced delta-ferrite. 13-8 PH (S13800) and 17-7 PH (S17700) are higher-strength variants for aerospace + spring fasteners.

PH fasteners are supplied per ASTM A693 / AMS 5643 with EN 10204 3.1 / 3.2 certification including hardness (HRC 32-48 by condition), tensile, and Charpy impact. NACE MR0175 service for PH grades is restricted to specific heat-treat conditions (H1150 only for 17-4) due to SSC susceptibility. Welding requires post-weld solution + age cycle to recover full strength.

15-5 ph stainless steel Fasteners
