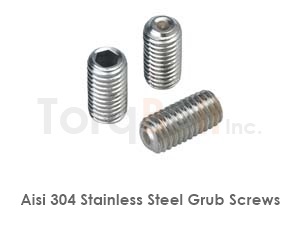

Aisi 304 Stainless Steel Set Screws manufactured at TorqBolt are corrosion resistant,low maintainence,silver finish.
Dimensional standards as per DIN 913,DIN 914,DIN 915,DIN 916,DIN 551,DIN 553,DIN 438,BS 4200 are provided.
The raw material of these fasteners is classified as Austenitic Stainless Steel. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Aisi 304 Stainless Steel Set Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
AISI 304 is most versatile and most common type of steel, it is also termed as 18/8 which is given on the basis of its composition where 18% of nickel and 8% of chromium is used. It is mostly used in day to day applications such as sinks and pans, cutlery and flatware, dairy production equipments, medical implants. It has good corrossion resistance, however pitting and corrosion resistance can occure due to chloride environments. This material however maintains acquious corrossion resiatance. It also shows good resiatnce to oxidation upto temperatures as high as 870 degrees celcious.
AISI 304 Stainless Steel Set Screws — Specifications & Dimensions
AISI 304 Stainless Steel Set screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures AISI 304 Stainless Steel Set screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
AISI 304 Stainless Steel Set screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
AISI 304 Stainless Steel Set screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces AISI 304 Stainless Steel Set set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
Austenitic Stainless Steel (300-series)
Austenitic stainless steels form the workhorse 300-series — face-centered cubic Fe-Cr-Ni alloys delivering excellent corrosion resistance, formability, weldability, and toughness from cryogenic to ~600°C. They are non-magnetic in the annealed condition and the default choice for food, dairy, pharmaceutical, marine, and general process-industry fasteners.
AISI 304 (18Cr-8Ni, UNS S30400) is the baseline; 304L (low-C) prevents weld sensitization for thicker sections. AISI 316 adds 2-3% Mo for chloride pitting resistance, and 316L is the welding-grade marine standard. 309 / 310 are the high-Cr grades for elevated temperatures (to ~1100°C). 321 / 347 are Ti / Nb-stabilized for stress-relieved welded service. 304LN / 316LN add nitrogen for higher yield without sacrificing corrosion.
Austenitic fasteners are supplied per ASTM A193 grade B8 (304), B8M (316), B8T (321), B8C (347) and ASTM A276 / A479 for general bar. EN 10204 3.1 / 3.2 certs cover mechanicals, hardness (HB ~150-217), intergranular-corrosion testing (ASTM A262 Practice E), and surface condition. NACE MR0175 sour-service compliance maintained below the hardness threshold for SSC.
