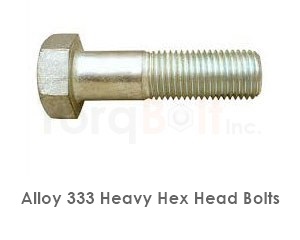

Alloy 333 Screws manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per ANSI B18.2.1 in imperial and ANSI B18.2.3.1M in metric are provided.
The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Alloy 333 Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Alloy 333 Is A High Chromium Nickel Based Alloy Used At High Temperatures. This Alloy Is Very Tough And It Can Withstand Thermal Shock Of Both Oil And Water Quenching Media.
Alloy 333 screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures Alloy 333 screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
Alloy 333 screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
Alloy 333 screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces Alloy 333 set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
High-nickel superalloys beyond the Inconel + Hastelloy family include specialty grades engineered for unique service envelopes — ultra-high-temperature furnace components, oxidation-resistant structural alloys, and corrosion alloys where C-276 reaches its limits.
Alloy 230 (UNS N06230) is a Ni-Cr-W-Mo solid-solution alloy combining the high-temperature strength of Inconel 625 with superior oxidation resistance to 1150°C — the standard for gas-turbine combustor cans and reformer tubes. Alloy 330 (N08330) is a Fe-Ni-Cr alloy for cyclic-temperature furnace fixtures. Alloy 333 (N06333) extends the envelope with higher Mo+W. Alloy 602 CA (N06025) achieves the highest oxidation resistance of any wrought Ni-base alloy at 1200°C+ via Al + reactive-element additions. Alloy W (N10004) is a Ni-Mo-Fe-Cr alloy for sulfuric and reducing-acid service.
These specialty alloys ship per ASTM B435 / B574 / B575 with EN 10204 3.1 / 3.2 certification including chemistry, mechanicals at room + elevated test temperatures, hardness, and oxidation / corrosion testing per the application's requirement. Welding requires matched-composition filler with strict control of dilution.
