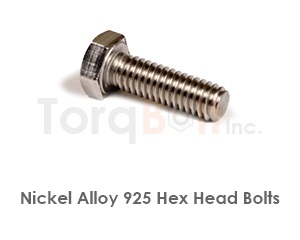

Incoloy 925 Hex Bolts manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 931,DIN 933,BS 1768,UNI 5731,UNI 5737,UNI 5739,ISO 4014,ISO 4017,BS 1769,BS 3692 are provided.
The raw material of these fasteners is renowned as registered trademarks like Inconel,Incoloy,Incoloy Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Incoloy 925 Hex Bolts are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Incoloy 925 Hex bolts are externally threaded fasteners with an integral head, manufactured per ASME B18.2.1, ISO 4014/4017, and DIN 933/931. TorqBolt produces Incoloy 925 Hex bolts in metric (M6–M100) and imperial (1/4"–4") diameters with custom lengths from 10 mm up to 3000 mm.
Head Styles Available
Hex head — ASME B18.2.1, the workhorse for general bolting
Heavy hex head — thicker head for high-load joints, ASTM A325 / A490 patterns
Socket head cap (SHCS) — ASME B18.3 / DIN 912, ideal where space is limited
Incoloy 925 Hex bolts are supplied with full or partial threading. Full-thread (UNC, UNF, ISO metric coarse/fine) for tension-only joints; partial-thread shank for shear loads where the unthreaded grip carries the load. Thread fits per ASME B1.1 (Class 2A) or ISO 965 (6g) by default; tighter Class 3A / 4h6h fits available on request. Engagement length follows the 1.5×D rule for tapped holes; 1.0×D minimum on through-bolting.
Mechanical Performance
Incoloy 925 Hex bolts achieve characteristic tensile strength, yield, and elongation per the source-material spec, with proof-load testing and hardness verification per ASTM F606 / ISO 898-1. Torque-tension calibration is published per ASME PCC-1 for critical joints. Each lot ships with EN 10204 3.1 (or 3.2 on request) certificates listing chemistry, mechanicals, hardness, and dimensional inspection.
Custom Configurations
TorqBolt can produce Incoloy 925 Hex bolts to drawing, with non-standard heads, drilled-shank variants, double-end, captive, or matched-set configurations. Coatings include zinc, PTFE, Xylan, hot-dip galvanized, and electroless nickel. NACE MR0175 / ISO 15156 sour-service certification on request.
Incoloy — Nickel-Iron-Chromium Alloys
Incoloy is the family of nickel-iron-chromium alloys positioned between stainless steels (low Ni) and Inconel superalloys (low Fe). Incoloy combines the high-temperature strength of nickel alloys with cost savings from iron substitution — the working-class superalloy.
Incoloy 800 (UNS N08800) and the modified Incoloy 800H / 800HT grades (controlled C, Al+Ti chemistry) are the most widely specified for heat-treating fixtures, ethylene-cracking furnace tubes, and steam-superheater bolting up to 1100°C. Incoloy 825 (N08825) adds Mo + Cu to deliver outstanding resistance to sulfuric, phosphoric, and reducing acids — the default for mineral-acid service and pickling-line fasteners. Incoloy 925 (N09925) is age-hardenable for high-strength sour-service applications, qualified to NACE MR0175.
Incoloy fasteners are supplied per ASTM B408 (rod/bar) and ASTM B564 (forged), with EN 10204 3.1 / 3.2 certification covering chemistry, mechanicals, intergranular corrosion (ASTM G28), and grain size. Welding uses matching filler (ENiCrMo-3 type for 800/825); post-weld solution-anneal at ~980°C restores corrosion resistance in heavy sections.
