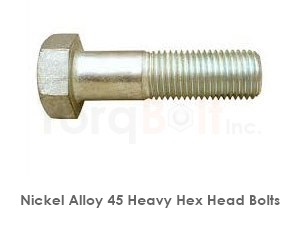

Inconel 45 Screws manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per ANSI B18.2.1 in imperial and ANSI B18.2.3.1M in metric are provided.
The raw material of these fasteners is renowned as registered trademarks like Inconel,Incoloy,Incoloy Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Inconel 45 Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Inconel 45 Is A High Chromium Autentic Nickel Chromium Iron Alloy With Additional 3% Silllicon And 0.10% Rare Earth Elements. With Formation Of Protective Layer Of Chromium Oxide With Adgecent Silicon Oxide Layer Make The Material Suitable For Various Applications Such As Incenaration, Petrochemicals, Gas Furnaces Etc.
Inconel 45 screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures Inconel 45 screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
Inconel 45 screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
Inconel 45 screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces Inconel 45 set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
Inconel — Nickel-Chromium Superalloys
Inconel alloys are nickel-chromium-based superalloys engineered for service where standard stainless steels cannot survive. The Inconel family combines high-temperature strength (typically retained up to 700-1100°C depending on grade) with outstanding oxidation and chloride-pitting resistance.
The most widely specified grade is Inconel 718, an age-hardenable Ni-Cr-Fe-Mo-Nb composition strengthened by γ' (Ni₃Al,Ti) and γ'' (Ni₃Nb) precipitates after solution + double-age heat treatment per AMS 5662 / 5663. Inconel 625 is solid-solution strengthened by Mo+Nb, supplied in the as-annealed condition, and weldable without post-weld heat treatment. Inconel X-750 uses Ti+Al precipitation hardening for spring + bolt applications to 700°C. Inconel 600 / 601 are general-purpose grades for furnace and heat-exchanger fasteners.
Typical specifications: ASTM B637 (forged bar), AMS 5662/5663 (rod/bar), ASTM B446 (625 bar), DIN 17752/17754 (round/forged). NACE MR0175 / ISO 15156 sour-service envelopes available on most grades when supplied in the correct heat-treat condition. PREN values for chloride pitting resistance typically exceed 50 across the Inconel range.
