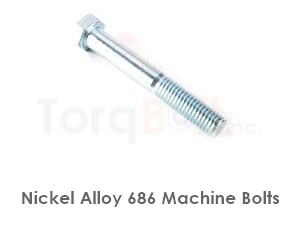

Inconel 686 Bolts manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 931,DIN 933,BS 1768,UNI 5731,UNI 5737,UNI 5739,ISO 4014,ISO 4017,BS 1769,BS 3692 are provided.
The raw material of these fasteners is renowned as registered trademarks like Inconel,Incoloy,Incoloy Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Inconel 686 Bolts are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Inconel Alloy 686 Is An Alloy Designed For Exceptional Corrosion Resistance In A Wide Range Of Extreme Environments. The Alloy Is Used In The Most Extreme Environments Experienced In Chemical Processing. Widely Used In Pollution Control, Pulp And Paper Production And Treatment Of Industrial And Municipal Wastes. Chemical Processing Uses Include Heat Exchangers, Reaction Vessels, Evaporates And Transfer Piping. Air Pollution Control Applications Are Stack Liners, Ducts Dampers, Scrubbers, Stack-gas Reheaters, Fans And Housings.
Inconel 686 bolts are externally threaded fasteners with an integral head, manufactured per ASME B18.2.1, ISO 4014/4017, and DIN 933/931. TorqBolt produces Inconel 686 bolts in metric (M6–M100) and imperial (1/4"–4") diameters with custom lengths from 10 mm up to 3000 mm.
Head Styles Available
Hex head — ASME B18.2.1, the workhorse for general bolting
Heavy hex head — thicker head for high-load joints, ASTM A325 / A490 patterns
Socket head cap (SHCS) — ASME B18.3 / DIN 912, ideal where space is limited
Inconel 686 bolts are supplied with full or partial threading. Full-thread (UNC, UNF, ISO metric coarse/fine) for tension-only joints; partial-thread shank for shear loads where the unthreaded grip carries the load. Thread fits per ASME B1.1 (Class 2A) or ISO 965 (6g) by default; tighter Class 3A / 4h6h fits available on request. Engagement length follows the 1.5×D rule for tapped holes; 1.0×D minimum on through-bolting.
Mechanical Performance
Inconel 686 bolts achieve characteristic tensile strength, yield, and elongation per the source-material spec, with proof-load testing and hardness verification per ASTM F606 / ISO 898-1. Torque-tension calibration is published per ASME PCC-1 for critical joints. Each lot ships with EN 10204 3.1 (or 3.2 on request) certificates listing chemistry, mechanicals, hardness, and dimensional inspection.
Custom Configurations
TorqBolt can produce Inconel 686 bolts to drawing, with non-standard heads, drilled-shank variants, double-end, captive, or matched-set configurations. Coatings include zinc, PTFE, Xylan, hot-dip galvanized, and electroless nickel. NACE MR0175 / ISO 15156 sour-service certification on request.
Inconel — Nickel-Chromium Superalloys
Inconel alloys are nickel-chromium-based superalloys engineered for service where standard stainless steels cannot survive. The Inconel family combines high-temperature strength (typically retained up to 700-1100°C depending on grade) with outstanding oxidation and chloride-pitting resistance.
The most widely specified grade is Inconel 718, an age-hardenable Ni-Cr-Fe-Mo-Nb composition strengthened by γ' (Ni₃Al,Ti) and γ'' (Ni₃Nb) precipitates after solution + double-age heat treatment per AMS 5662 / 5663. Inconel 625 is solid-solution strengthened by Mo+Nb, supplied in the as-annealed condition, and weldable without post-weld heat treatment. Inconel X-750 uses Ti+Al precipitation hardening for spring + bolt applications to 700°C. Inconel 600 / 601 are general-purpose grades for furnace and heat-exchanger fasteners.
Typical specifications: ASTM B637 (forged bar), AMS 5662/5663 (rod/bar), ASTM B446 (625 bar), DIN 17752/17754 (round/forged). NACE MR0175 / ISO 15156 sour-service envelopes available on most grades when supplied in the correct heat-treat condition. PREN values for chloride pitting resistance typically exceed 50 across the Inconel range.
