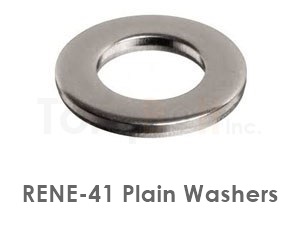

RENE-41 Washers manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 125,ISO 7089,ISO 7090,ISO 7092,DIN 433,DIN 7349,DIN 9021,ISO 7093, are provided.
The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. RENE-41 Washers are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Rene 41 Is Nickel Chromium Cobalt Moly Alloy With Additions Of Titanium .alloy 41 Has High Strength At Elevated Temperatures. Rene 41 Is Highly Corrosion And Oxidation Resistant And It Is Resistant To Jet Engine Combustion.
Rene 41 washers distribute clamp load over a wider bearing area, prevent surface damage, and accommodate bolt-hole oversize. TorqBolt manufactures Rene 41 washers per ASME B18.21.1 / B18.22.1, DIN 125 / 126 / 127 / 9021, and ISO 7089 / 7090 / 7093 / 7094, in metric (M3–M100) and imperial (#4–4") sizes.
Plain Washer Dimensions
Rene 41 plain washers are characterized by three critical dimensions: ID (clearance over bolt diameter), OD (load distribution area), and thickness (compressive stiffness). Standard tolerances are h13 on OD and H13 on ID per ISO 286-2; flatness 0.05 mm/100 mm and parallelism 0.05 mm/100 mm verified per lot. Edge break / chamfer per drawing.
Form Variants
Form A (regular) — DIN 125-A / ISO 7089, the default plain washer
Form B (large OD) — DIN 9021 / ISO 7093, for soft mating surfaces
Form C (heavy) — DIN 7349 / ISO 7094, for slotted holes / structural use
Spring (split) — DIN 127 / ASME B18.21.1, helical anti-vibration
Conical / Belleville (DIN 6796 / 2093) — preload maintenance
Hardness & Surface
Rene 41 washers are hardness-controlled to balance load-distribution stiffness against surface damage to mating parts. Typical Vickers HV ranges: plain 140–180 HV; spring 380–440 HV; Belleville 460–540 HV. Surface finish Ra 1.6 µm or better; on critical sealing applications, Ra 0.8 µm available.
Special Patterns
TorqBolt produces Rene 41 washers in square (DIN 436), fender (oversized OD), tab / lock-tang (DIN 462 / 463), and spherical seat washer + cup combinations. EN 10204 3.1 / 3.2 material certificates standard; NACE MR0175 / ISO 15156 on request.
Specialty Fastener Alloys
TorqBolt manufactures specialty fasteners across the full range of corrosion-resistant alloys (CRAs), high-temperature superalloys, and engineered metallurgies required by the process industries. Beyond the high-volume Inconel, Hastelloy, Duplex, and stainless grades, our supply chain covers a long tail of specification-driven alloys for unique service envelopes — sour wells, extreme cryogenics, pharmaceutical-grade purity, oxidizing acids, chlorinated solvents, and high-temperature cyclic-load fasteners.
Each specialty alloy is sourced from approved mills with full melt traceability through a closed forging route. Heat-treat condition, mechanical properties, and corrosion testing are controlled to the customer's drawing or governing specification — whether ASTM, ASME, AMS, MIL, NORSOK, NACE, or proprietary end-user codes. EN 10204 3.1 (mill cert) or 3.2 (third-party witnessed) material test certificates are issued with every lot, listing chemistry, mechanicals at relevant test temperatures, hardness, dimensional inspection, and any corrosion or NDT test results required.
Third-party inspection by TUV, Lloyd's, BV, DNV, SGS, and Intertek is arrangeable. NACE MR0175 / ISO 15156 sour-service qualification, NORSOK M-650 mill qualification, API 6A wellhead bolting, API 20E subsea bolting, and PED 2014/68/EU pressure-equipment compliance available across the alloy range as the application demands.
