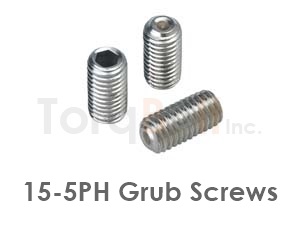

15-5 Ph Stainless Steel Set Screws manufactured at TorqBolt are high strength, good corrosion resistance, good mechanical properties at temperatures up to 600°F (316°C).
Dimensional standards as per DIN 913,DIN 914,DIN 915,DIN 916,DIN 551,DIN 553,DIN 438,BS 4306 are provided.
The raw material of these fasteners is classified as Martensitic Precipitation Hardening stainless steel. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. 15-5PH Set Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Alloy 15-5 Ph Is Also Known As Xm-12 .this Alloy Has Excellent Corrosion Resistance .
15 5 PH Stainless Steel Set screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures 15 5 PH Stainless Steel Set screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
15 5 PH Stainless Steel Set screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
15 5 PH Stainless Steel Set screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces 15 5 PH Stainless Steel Set set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
Precipitation-Hardening (PH) Stainless Steels
Precipitation-hardening (PH) stainless steels combine the corrosion resistance of austenitic stainless with the high strength of martensitic grades. A two-step heat treatment — solution anneal followed by ageing at 480-620°C — precipitates Cu, Ti, or Al-rich phases that lock the matrix at tensile strengths up to 1300 MPa with minimal distortion.
17-4 PH (UNS S17400 / AMS 5643) is the dominant grade: Cu-precipitation hardened, with corrosion roughly equivalent to AISI 304. Five standard ageing conditions H900 (highest strength), H925, H1025, H1075, H1150 trade strength against fracture toughness. 15-5 PH (S15500) is the through-thickness-tougher variant with reduced delta-ferrite. 13-8 PH (S13800) and 17-7 PH (S17700) are higher-strength variants for aerospace + spring fasteners.
PH fasteners are supplied per ASTM A693 / AMS 5643 with EN 10204 3.1 / 3.2 certification including hardness (HRC 32-48 by condition), tensile, and Charpy impact. NACE MR0175 service for PH grades is restricted to specific heat-treat conditions (H1150 only for 17-4) due to SSC susceptibility. Welding requires post-weld solution + age cycle to recover full strength.
