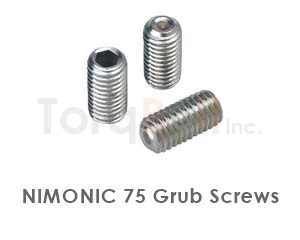

NIMONIC 75 Set Screws manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 913,DIN 914,DIN 915,DIN 916,DIN 551,DIN 553,DIN 438,BS 4283 are provided.
The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. NIMONIC 75 Set Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Nimonic 75 Is A Nickel Chromium Alloy With Additions Of Carbon And Titanium. Also Known As Alloy 75 This Alloy Is Resistant To Oxidation At Elevated Temperatures With A Medium Strength. Nimonic Alloy 75a Can Be Provided In Solution Annealed And Precipitation Hardened Condition.
Nimonic 75 Set Screws — Specifications & Dimensions
Nimonic 75 Set screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures Nimonic 75 Set screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
Nimonic 75 Set screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
Nimonic 75 Set screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces Nimonic 75 Set set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
Nimonic — Nickel-Chromium Wrought Superalloys
Nimonic is a family of wrought nickel-chromium superalloys originally developed for jet-engine turbine blade and bolting service, where steady-state operating temperatures exceed 700°C under high cyclic stress. Composition centers on ~50-75% Ni, 15-22% Cr, 0-20% Co with Ti+Al additions for γ' precipitation hardening. Nimonic alloys retain creep strength well beyond the limits of conventional Fe-Ni-Cr superalloys.
Nimonic 75 (UNS N06075) is the simplest grade: solid-solution Ni-Cr without precipitation hardening, used for furnace fixtures and mild-temperature bolting to 760°C. Nimonic 80A (N07080) adds Ti+Al for age-hardening — tensile ~1100 MPa, the workhorse of steam-turbine and exhaust-valve bolting per ASTM B637 / AMS 5662. Nimonic 90 (N07090) adds 16-20% Co for service to 920°C with stress-rupture life suitable for gas-turbine combustor bolts.
Nimonic fasteners ship per ASTM B637 / B564 with EN 10204 3.1 / 3.2 certs covering chemistry, hardness (HRC 30-42), tensile at room + elevated temperature, and stress-rupture acceptance per the heat-treat condition. NACE MR0175 sour-service compliance available in solution-annealed condition.
