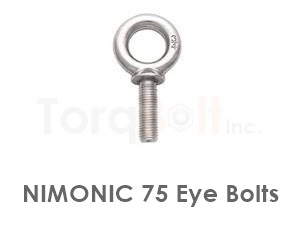

NIMONIC 75 Eye Bolts manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 580,ISO 3266, are provided.
The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. NIMONIC 75 Eye Bolts are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Nimonic 75 Eye bolts are externally threaded fasteners with an integral head, manufactured per ASME B18.2.1, ISO 4014/4017, and DIN 933/931. TorqBolt produces Nimonic 75 Eye bolts in metric (M6–M100) and imperial (1/4"–4") diameters with custom lengths from 10 mm up to 3000 mm.
Head Styles Available
Hex head — ASME B18.2.1, the workhorse for general bolting
Heavy hex head — thicker head for high-load joints, ASTM A325 / A490 patterns
Socket head cap (SHCS) — ASME B18.3 / DIN 912, ideal where space is limited
Nimonic 75 Eye bolts are supplied with full or partial threading. Full-thread (UNC, UNF, ISO metric coarse/fine) for tension-only joints; partial-thread shank for shear loads where the unthreaded grip carries the load. Thread fits per ASME B1.1 (Class 2A) or ISO 965 (6g) by default; tighter Class 3A / 4h6h fits available on request. Engagement length follows the 1.5×D rule for tapped holes; 1.0×D minimum on through-bolting.
Mechanical Performance
Nimonic 75 Eye bolts achieve characteristic tensile strength, yield, and elongation per the source-material spec, with proof-load testing and hardness verification per ASTM F606 / ISO 898-1. Torque-tension calibration is published per ASME PCC-1 for critical joints. Each lot ships with EN 10204 3.1 (or 3.2 on request) certificates listing chemistry, mechanicals, hardness, and dimensional inspection.
Custom Configurations
TorqBolt can produce Nimonic 75 Eye bolts to drawing, with non-standard heads, drilled-shank variants, double-end, captive, or matched-set configurations. Coatings include zinc, PTFE, Xylan, hot-dip galvanized, and electroless nickel. NACE MR0175 / ISO 15156 sour-service certification on request.
Nimonic — Nickel-Chromium Wrought Superalloys
Nimonic is a family of wrought nickel-chromium superalloys originally developed for jet-engine turbine blade and bolting service, where steady-state operating temperatures exceed 700°C under high cyclic stress. Composition centers on ~50-75% Ni, 15-22% Cr, 0-20% Co with Ti+Al additions for γ' precipitation hardening. Nimonic alloys retain creep strength well beyond the limits of conventional Fe-Ni-Cr superalloys.
Nimonic 75 (UNS N06075) is the simplest grade: solid-solution Ni-Cr without precipitation hardening, used for furnace fixtures and mild-temperature bolting to 760°C. Nimonic 80A (N07080) adds Ti+Al for age-hardening — tensile ~1100 MPa, the workhorse of steam-turbine and exhaust-valve bolting per ASTM B637 / AMS 5662. Nimonic 90 (N07090) adds 16-20% Co for service to 920°C with stress-rupture life suitable for gas-turbine combustor bolts.
Nimonic fasteners ship per ASTM B637 / B564 with EN 10204 3.1 / 3.2 certs covering chemistry, hardness (HRC 30-42), tensile at room + elevated temperature, and stress-rupture acceptance per the heat-treat condition. NACE MR0175 sour-service compliance available in solution-annealed condition.
