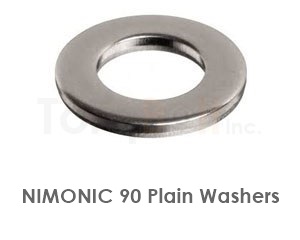

NIMONIC 90 Washers manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 125,ISO 7089,ISO 7090,ISO 7092,DIN 433,DIN 7349,DIN 9021,ISO 7093, are provided.
The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. NIMONIC 90 Washers are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Nimonic 90 Is A Nickel Chromium Cobalt Alloy With Additions Of Aluminium And Titanium. Also Known As Alloy 90 This Alloy Is Resistant To Oxidation At Elevated Temperatures With A Medium Strength. It Has Excellent Stress Rupture Strength And Creep Resistance At High Temperatures. Nimonic Alloy 90 Can Be Provided In Solution Annealed And Precipitation Hardened Condition.
Nimonic 90 washers distribute clamp load over a wider bearing area, prevent surface damage, and accommodate bolt-hole oversize. TorqBolt manufactures Nimonic 90 washers per ASME B18.21.1 / B18.22.1, DIN 125 / 126 / 127 / 9021, and ISO 7089 / 7090 / 7093 / 7094, in metric (M3–M100) and imperial (#4–4") sizes.
Plain Washer Dimensions
Nimonic 90 plain washers are characterized by three critical dimensions: ID (clearance over bolt diameter), OD (load distribution area), and thickness (compressive stiffness). Standard tolerances are h13 on OD and H13 on ID per ISO 286-2; flatness 0.05 mm/100 mm and parallelism 0.05 mm/100 mm verified per lot. Edge break / chamfer per drawing.
Form Variants
Form A (regular) — DIN 125-A / ISO 7089, the default plain washer
Form B (large OD) — DIN 9021 / ISO 7093, for soft mating surfaces
Form C (heavy) — DIN 7349 / ISO 7094, for slotted holes / structural use
Spring (split) — DIN 127 / ASME B18.21.1, helical anti-vibration
Conical / Belleville (DIN 6796 / 2093) — preload maintenance
Hardness & Surface
Nimonic 90 washers are hardness-controlled to balance load-distribution stiffness against surface damage to mating parts. Typical Vickers HV ranges: plain 140–180 HV; spring 380–440 HV; Belleville 460–540 HV. Surface finish Ra 1.6 µm or better; on critical sealing applications, Ra 0.8 µm available.
Special Patterns
TorqBolt produces Nimonic 90 washers in square (DIN 436), fender (oversized OD), tab / lock-tang (DIN 462 / 463), and spherical seat washer + cup combinations. EN 10204 3.1 / 3.2 material certificates standard; NACE MR0175 / ISO 15156 on request.
Nimonic — Nickel-Chromium Wrought Superalloys
Nimonic is a family of wrought nickel-chromium superalloys originally developed for jet-engine turbine blade and bolting service, where steady-state operating temperatures exceed 700°C under high cyclic stress. Composition centers on ~50-75% Ni, 15-22% Cr, 0-20% Co with Ti+Al additions for γ' precipitation hardening. Nimonic alloys retain creep strength well beyond the limits of conventional Fe-Ni-Cr superalloys.
Nimonic 75 (UNS N06075) is the simplest grade: solid-solution Ni-Cr without precipitation hardening, used for furnace fixtures and mild-temperature bolting to 760°C. Nimonic 80A (N07080) adds Ti+Al for age-hardening — tensile ~1100 MPa, the workhorse of steam-turbine and exhaust-valve bolting per ASTM B637 / AMS 5662. Nimonic 90 (N07090) adds 16-20% Co for service to 920°C with stress-rupture life suitable for gas-turbine combustor bolts.
Nimonic fasteners ship per ASTM B637 / B564 with EN 10204 3.1 / 3.2 certs covering chemistry, hardness (HRC 30-42), tensile at room + elevated temperature, and stress-rupture acceptance per the heat-treat condition. NACE MR0175 sour-service compliance available in solution-annealed condition.
