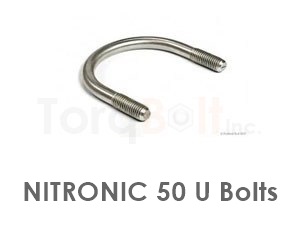

NITRONIC 50 U Bolts manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 3688 are provided.
The raw material of these fasteners is further classified as ALLOY XM-19. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. NITRONIC 50 U Bolts are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Nitronic 50 U bolts are externally threaded fasteners with an integral head, manufactured per ASME B18.2.1, ISO 4014/4017, and DIN 933/931. TorqBolt produces Nitronic 50 U bolts in metric (M6–M100) and imperial (1/4"–4") diameters with custom lengths from 10 mm up to 3000 mm.
Head Styles Available
Hex head — ASME B18.2.1, the workhorse for general bolting
Heavy hex head — thicker head for high-load joints, ASTM A325 / A490 patterns
Socket head cap (SHCS) — ASME B18.3 / DIN 912, ideal where space is limited
Nitronic 50 U bolts are supplied with full or partial threading. Full-thread (UNC, UNF, ISO metric coarse/fine) for tension-only joints; partial-thread shank for shear loads where the unthreaded grip carries the load. Thread fits per ASME B1.1 (Class 2A) or ISO 965 (6g) by default; tighter Class 3A / 4h6h fits available on request. Engagement length follows the 1.5×D rule for tapped holes; 1.0×D minimum on through-bolting.
Mechanical Performance
Nitronic 50 U bolts achieve characteristic tensile strength, yield, and elongation per the source-material spec, with proof-load testing and hardness verification per ASTM F606 / ISO 898-1. Torque-tension calibration is published per ASME PCC-1 for critical joints. Each lot ships with EN 10204 3.1 (or 3.2 on request) certificates listing chemistry, mechanicals, hardness, and dimensional inspection.
Custom Configurations
TorqBolt can produce Nitronic 50 U bolts to drawing, with non-standard heads, drilled-shank variants, double-end, captive, or matched-set configurations. Coatings include zinc, PTFE, Xylan, hot-dip galvanized, and electroless nickel. NACE MR0175 / ISO 15156 sour-service certification on request.
Nitronic stainless steels are nitrogen-strengthened austenitic alloys that achieve high yield strength (1.5-2× conventional 304/316) without the heat-treatment required for precipitation-hardening grades. Nitrogen acts as a powerful interstitial solid-solution strengthener while remaining fully austenitic, retaining the corrosion resistance and toughness of standard austenitics.
Nitronic 50 (UNS S20910) is the dominant grade: 22Cr-13Ni-5Mn-2Mo-0.3N giving yield ~380 MPa in the annealed condition (vs ~205 MPa for 316L) and corrosion resistance better than 316L. The standard choice for high-strength corrosion-resistant fasteners in marine + chemical-process service. Nitronic 60 (S21800) trades some corrosion for outstanding galling and wear resistance — the workhorse for valve trim, threaded couplings, and wear-prone bolting where galling would destroy a 304/316 thread. Nitronic 32 / 33 / 40 are low-Ni variants for cost-sensitive applications.
Nitronic fasteners ship per ASTM A276 / A479 with EN 10204 3.1 / 3.2 certification covering nitrogen content (critical for property reproducibility), tensile, hardness, and stress-corrosion testing. NACE MR0175 sour-service is fully qualified in the annealed condition for both Nitronic 50 and 60.
