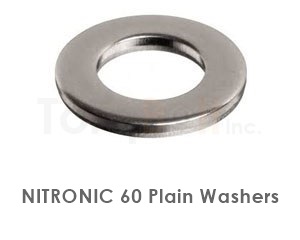

NITRONIC 60 Washers manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 125,ISO 7089,ISO 7090,ISO 7092,DIN 433,DIN 7349,DIN 9021,ISO 7093, are provided.
The raw material of these fasteners is further classified as ALLOY XM-19. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. NITRONIC 60 Washers are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Nitronic 60 Is A Chrome Manganese Nickel Based Alloy Bearing Properties Of High Nickel Alloys. Alloy 60 Has Better Chloride Pitting Resistance As Compared To Stainless Steel Grades. Nitronic Alloy 60 Is Mostly Known For Galling, Wearing And Resistance At High Temperatures. This Alloy Can Also Exhibits Excellent Impact Results At Low Temperature.
Nitronic 60 washers distribute clamp load over a wider bearing area, prevent surface damage, and accommodate bolt-hole oversize. TorqBolt manufactures Nitronic 60 washers per ASME B18.21.1 / B18.22.1, DIN 125 / 126 / 127 / 9021, and ISO 7089 / 7090 / 7093 / 7094, in metric (M3–M100) and imperial (#4–4") sizes.
Plain Washer Dimensions
Nitronic 60 plain washers are characterized by three critical dimensions: ID (clearance over bolt diameter), OD (load distribution area), and thickness (compressive stiffness). Standard tolerances are h13 on OD and H13 on ID per ISO 286-2; flatness 0.05 mm/100 mm and parallelism 0.05 mm/100 mm verified per lot. Edge break / chamfer per drawing.
Form Variants
Form A (regular) — DIN 125-A / ISO 7089, the default plain washer
Form B (large OD) — DIN 9021 / ISO 7093, for soft mating surfaces
Form C (heavy) — DIN 7349 / ISO 7094, for slotted holes / structural use
Spring (split) — DIN 127 / ASME B18.21.1, helical anti-vibration
Conical / Belleville (DIN 6796 / 2093) — preload maintenance
Hardness & Surface
Nitronic 60 washers are hardness-controlled to balance load-distribution stiffness against surface damage to mating parts. Typical Vickers HV ranges: plain 140–180 HV; spring 380–440 HV; Belleville 460–540 HV. Surface finish Ra 1.6 µm or better; on critical sealing applications, Ra 0.8 µm available.
Special Patterns
TorqBolt produces Nitronic 60 washers in square (DIN 436), fender (oversized OD), tab / lock-tang (DIN 462 / 463), and spherical seat washer + cup combinations. EN 10204 3.1 / 3.2 material certificates standard; NACE MR0175 / ISO 15156 on request.
Nitronic stainless steels are nitrogen-strengthened austenitic alloys that achieve high yield strength (1.5-2× conventional 304/316) without the heat-treatment required for precipitation-hardening grades. Nitrogen acts as a powerful interstitial solid-solution strengthener while remaining fully austenitic, retaining the corrosion resistance and toughness of standard austenitics.
Nitronic 50 (UNS S20910) is the dominant grade: 22Cr-13Ni-5Mn-2Mo-0.3N giving yield ~380 MPa in the annealed condition (vs ~205 MPa for 316L) and corrosion resistance better than 316L. The standard choice for high-strength corrosion-resistant fasteners in marine + chemical-process service. Nitronic 60 (S21800) trades some corrosion for outstanding galling and wear resistance — the workhorse for valve trim, threaded couplings, and wear-prone bolting where galling would destroy a 304/316 thread. Nitronic 32 / 33 / 40 are low-Ni variants for cost-sensitive applications.
Nitronic fasteners ship per ASTM A276 / A479 with EN 10204 3.1 / 3.2 certification covering nitrogen content (critical for property reproducibility), tensile, hardness, and stress-corrosion testing. NACE MR0175 sour-service is fully qualified in the annealed condition for both Nitronic 50 and 60.
