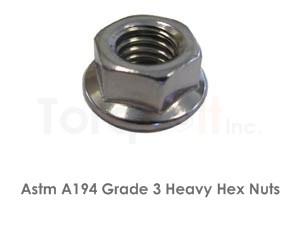

Astm A194 Grade 3 Heavy Hex Nuts Specification
Astm A194 Grade 3 Heavy Hex Nuts Properties
| Chemical Properties | ||||||
|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo |
| 0.10 Min | 1.00 Max | 1.00 Max | 0.040 Max | 0.030 Max | 4.0-6.0 | 0.40-0.65 |
| Mechanical Properties | ||||||
|---|---|---|---|---|---|---|
| Proof Load Using Threaded Mandrel- METRIC (kN) | ||||||
| TYPE | M6 | M8 | M10 | M12 | M14 | M16 |
| HEAVY HEX | 29.2 | 44.1 | 69.9 | 101.6 | 138.6 | 189.2 |
| HEX | 20.8 | 37.9 | 60 | 87.3 | 119 | 162.5 |
| TYPE | M20 | M22 | M24 | M27 | M30 | M36 |
| HEAVY HEX | 295.2 | 365.1 | 425.4 | 553.4 | 676 | 984.5 |
| HEX | 253.6 | 313.6 | 365.4 | 475.1 | 580.6 | 845.6 |
| Hardness | ||
|---|---|---|
| BHN | HRB | HRC |
| Min | ||
| 248-352 | - | 24-38 |
| Heat Treatment | ||||||
|---|---|---|---|---|---|---|
| Quenched & Tempered@565°C. | ||||||
| Equivalent Designation | ||
|---|---|---|
| UNS | ||
| EN number | ||
| EN Name | ||
| W.Nr. | ||
| SS | ||
| AFNOR |
Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.
Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.
Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.
