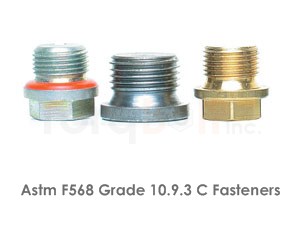

Astm F568 Grade 10.9.3 C Fasteners Specification
Astm F568 Grade 10.9.3 C Fasteners Properties
| Chemical Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Ni | Cu | V |
| 0.14-0.26 | 0.76-1.39 | 0.040 Max | 0.045 Max | 0.13-0.37 | 0.27-0.53 | 0.22-0.53 | 0.17-0.53 | 0.010 Min |
| Mechanical Properties | ||||
|---|---|---|---|---|
| Yeild strength | Tensile strength | Elongation | Reduction | Hardness |
| Mpa | Mpa | % | % | HRC |
| min | min | min | min | |
| 940 | 1040 | 9 | 35 | 33-39 |
| Proof Load Values, kN | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Product Diameter & Thread Pitch | |||||||
| M5 X 0.8 | M6 X 1 | M8 X 1.25 | M10 X 1.5 | M12 X 1.75 | M14 X 2 | M16 X 2 | |
| Method 1 | 11.8 | 16.7 | 30.4 | 48.1 | 70 | 95.5 | 130 |
| Method 2 | 13.3 | 18.9 | 34.4 | 54.5 | 79.2 | 108 | 148 |
| M20 X 2.5 | M22 X 2.5 | M24 X 3 | M27 X 3 | M30 X 3.5 | M36 X 4 | M42 X 4.5 | |
| Method 1 | 203 | 251 | 293 | 381 | 466 | 678 | 930 |
| Method 2 | 230 | 285 | 332 | 431 | 527 | 763 | 1050 |
| M48 X 5 | M56 X 5.5 | M64 X 6 | M72 X 6 | M80 X 6 | M90 X 6 | M100 X 6 | |
| Method 1 | 1220 | 1680 | 2220 | 2870 | 3600 | 4640 | 5800 |
| Method 2 | 1380 | 1910 | 2520 | 3250 | 4080 | 5250 | 6570 |
| Heat Treatment | |||
|---|---|---|---|
| Quenched & Tempered @ 425°C | |||
| Equivalent Designation | ||
|---|---|---|
| UNS | ||
| EN number | ||
| EN Name | ||
| W.Nr. | ||
| SS | ||
| AFNOR | ||
Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.
Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.
Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.
Hexagon Bolts
- ANSI B18.2.1
- ANSI B18.2.3.1M
- DIN 931
- DIN 933
- BS 1768
- UNI 5731
- UNI 5737
- UNI 5739
- ISO 4014
- ISO 4017
- BS 1769
- BS 3692
Socket/Slotted Set Screws
- DIN 913
- DIN 914
- DIN 915
- DIN 916
- DIN 551
- DIN 553
- DIN 438
- BS 4168
Socket/Slotted Countersunk Screws
- DIN 963
- DIN 7991
- BS 4168
- BS 1981
- BS 483
- BS 2470
Socket Cap Screws
- ANSI B18.3
- B18.3.1M
- DIN 912
- DIN 6912
- DIN 7984
- ANSI B18.3
- ISO 4762
- UNI 5931
- BS 2470
- BS 4168
Stud Bolts
- ASME B18.2.1
- DIN 976
- DIN 938
- DIN 939
- DIN 2510
- BS 4439
- BS 2693
- BS4882
Nuts
- ANSI B18.2.2
- ANSI B18.2.4.6M
- DIN 934
- DIN 936
- BS 1768
- BS 1769
- BS 1083
- BS 3692
- ISO 4032
- ISO 4033
- ISO 4035
- UNI 5587
- UNI 5588
- UNI 5589
Washers
- ASME B18.22.1
- ASTM F436
- ISO 7089
- DIN 125
- DIN 9021
- BS 4320
- BS 3410
- DIN 127
- BS 4464
- BS 1802
- UNI 6952
