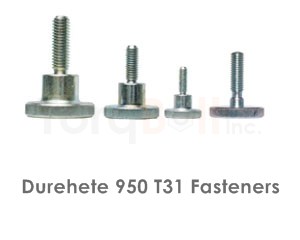

Durehete 950 T31 Fasteners Specification
Durehete 950 T31 Fasteners Properties
| Chemical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Mo | V | Al | |
| 0.36-0.47 | 0.45-0.70 | 0.04 Max | 0.04 Max | 0.15-0.35 | 0.80-1.15 | 0.5-0.65 | 0.50-0.65 | 0.015 | |
| Mechanical Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Yeild strength | Tensile strength | Elongation | Reduction | Hardness | |||
| Mpa | Mpa | % | % | BHN | HRB | HRC | ||
| min | min | min | min | |||||
| Up to 2-1/2 | 725 | 860 | 18 | 50 | 321 Max | 35 Max | ||
| 2-5/8 - 4 | 655 | 760 | 17 | 45 | 302 Max | 33 Max | ||
| 4-1/8 - 7 | 585 | 690 | 16 | 45 | 227 Max | 29 Max | ||
| Physical Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| Temperature (oC) | ||||||||
| 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | |
| Density (kg/m2) | 7810 | - | - | - | - | - | - | - |
| Electrical Resistivity (nom) | 273 | 320 | 390 | 465 | 560 | 660 | 785 | 955 |
| Thermal Expansion (K-1 x 10-5) | - | 11.1 | 12.1 | 12.9 | 13.5 | 13.9 | 14.1 | - |
| Thermal conductivity (w/mk) | 42 | 41 | 40 | 39 | 36 | 34 | - | - |
| specific Heat (J/kgK) | 420 | 449 | 487 | 525 | 546 | 567 | 621 | 651 |
| Heat Content (kj/kg) | 0 | 33.6 | 86.1 | 147 | 107 | 273 | 349 | 441 |
| Modules of Elasticity(kN/mm2) | 211 | 207 | 198 | 190 | 183 | 174 | 165 | - |
| Heat Treatment | |||||
|---|---|---|---|---|---|
| Quenched @ 9250C & Tempered @ 6500C | |||||
| Equivalent Designation | ||||||
|---|---|---|---|---|---|---|
| UNS No. K14675 | ||||||
| EN No. 40CrMoV4.6 | ||||||
| BS1506 671-850 | ||||||
| W.Nr. 1.7711 | ||||||
| EN10269 | ||||||
| Din 17240 En 1515-1 | ||||||
| Astm A193 Gr.B16 | ||||||
Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.
Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.
Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.
Hexagon Bolts
- ANSI B18.2.1
- ANSI B18.2.3.1M
- DIN 931
- DIN 933
- BS 1768
- UNI 5731
- UNI 5737
- UNI 5739
- ISO 4014
- ISO 4017
- BS 1769
- BS 3692
Socket/Slotted Set Screws
- DIN 913
- DIN 914
- DIN 915
- DIN 916
- DIN 551
- DIN 553
- DIN 438
- BS 4168
Socket/Slotted Countersunk Screws
- DIN 963
- DIN 7991
- BS 4168
- BS 1981
- BS 483
- BS 2470
Socket Cap Screws
- ANSI B18.3
- B18.3.1M
- DIN 912
- DIN 6912
- DIN 7984
- ANSI B18.3
- ISO 4762
- UNI 5931
- BS 2470
- BS 4168
Stud Bolts
- ASME B18.2.1
- DIN 976
- DIN 938
- DIN 939
- DIN 2510
- BS 4439
- BS 2693
- BS4882
Nuts
- ANSI B18.2.2
- ANSI B18.2.4.6M
- DIN 934
- DIN 936
- BS 1768
- BS 1769
- BS 1083
- BS 3692
- ISO 4032
- ISO 4033
- ISO 4035
- UNI 5587
- UNI 5588
- UNI 5589
Washers
- ASME B18.22.1
- ASTM F436
- ISO 7089
- DIN 125
- DIN 9021
- BS 4320
- BS 3410
- DIN 127
- BS 4464
- BS 1802
- UNI 6952
TorqBolt Inc. is india’s leading Durehete 950 T31 Fasteners Suppliers, bolts stockist, bolts suppliers, bolts exporters and importer ,bolts dealers, stockholders, indentor, bolts manufacturers, retailers, wholesaler, bolts distributors, traders, specialized in delivering consignments on time by means of Express Courier Services DHL, FedEx, UPS, TNT, etc. to the remote locations. To find your location kindly select the list of countries and states:
Select Country : Select State:
