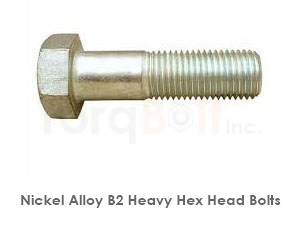

Hastelloy B2 Screws manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per ANSI B18.2.1 in imperial and ANSI B18.2.3.1M in metric are provided.
The raw material of these fasteners is renowned as registered trademarks like Hastealloy. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Hastelloy B2 Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Hastelloy B2 Is A Nickel-molybdenum Alloy With Good Resistance To Reducing Environments. Such As Hydrogen Chloride Gas, Sulfuric, Acetic, And Phosphoric Acids, Alloy B2 Should Be Used In Oxidising Media Or Where Oxidising Contaminants Are Available In Reducing Media. Premature Failure May Occure If B2 Is Used Where Iron And Copper Is Present In A System Containing Hydrochlroric Acid. It Shows Very Good Resistance To Pitting.
Hastelloy B2 screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures Hastelloy B2 screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
Hastelloy B2 screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
Hastelloy B2 screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces Hastelloy B2 set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
Hastelloy — Ni-Cr-Mo / Ni-Mo Corrosion Alloys
Hastelloy is the trade designation for a family of nickel-chromium-molybdenum (and nickel-molybdenum) alloys formulated for severe wet-corrosion service: hydrochloric acid, sulfuric acid, chloride pitting, crevice corrosion, and sour wells.
Hastelloy C-276 (UNS N10276) is the workhorse: ~16% Cr, 16% Mo, 4% W gives unmatched resistance to oxidizing + reducing chloride media, the only nickel alloy resistant to wet chlorine + hypochlorite. Hastelloy C-22 (N06022) is upgraded with higher Cr for better oxidizing-acid performance. Hastelloy C-2000 (N06200) adds Cu for superior performance across the full pH range. Hastelloy B-3 (N10675) is Ni-Mo for hot HCl service. Hastelloy G-35 (N06035) targets phosphoric-acid plants.
Hastelloy fasteners ship per ASTM B574 / B575 (rod/bar/plate), with EN 10204 3.1 / 3.2 certification including PMI and intergranular-corrosion testing per ASTM G28. The ASTM A193 grade B14 + B7M designations cover Hastelloy bolting for ASME pressure-vessel use. NACE MR0175 / ISO 15156 sour-service compliance is standard. Welding requires matching filler metal (Ernicrmo-4 for C-276) with no post-weld solution anneal.
