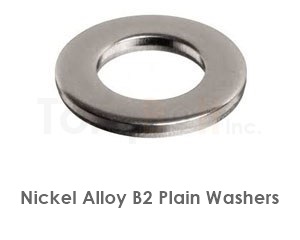

Hastelloy B2 Washers manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 125,ISO 7089,ISO 7090,ISO 7092,DIN 433,DIN 7349,DIN 9021,ISO 7093, are provided.
The raw material of these fasteners is renowned as registered trademarks like Hastealloy. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. Hastelloy B2 Washers are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Hastelloy B2 Is A Nickel-molybdenum Alloy With Good Resistance To Reducing Environments. Such As Hydrogen Chloride Gas, Sulfuric, Acetic, And Phosphoric Acids, Alloy B2 Should Be Used In Oxidising Media Or Where Oxidising Contaminants Are Available In Reducing Media. Premature Failure May Occure If B2 Is Used Where Iron And Copper Is Present In A System Containing Hydrochlroric Acid. It Shows Very Good Resistance To Pitting.
Hastelloy B2 washers distribute clamp load over a wider bearing area, prevent surface damage, and accommodate bolt-hole oversize. TorqBolt manufactures Hastelloy B2 washers per ASME B18.21.1 / B18.22.1, DIN 125 / 126 / 127 / 9021, and ISO 7089 / 7090 / 7093 / 7094, in metric (M3–M100) and imperial (#4–4") sizes.
Plain Washer Dimensions
Hastelloy B2 plain washers are characterized by three critical dimensions: ID (clearance over bolt diameter), OD (load distribution area), and thickness (compressive stiffness). Standard tolerances are h13 on OD and H13 on ID per ISO 286-2; flatness 0.05 mm/100 mm and parallelism 0.05 mm/100 mm verified per lot. Edge break / chamfer per drawing.
Form Variants
Form A (regular) — DIN 125-A / ISO 7089, the default plain washer
Form B (large OD) — DIN 9021 / ISO 7093, for soft mating surfaces
Form C (heavy) — DIN 7349 / ISO 7094, for slotted holes / structural use
Spring (split) — DIN 127 / ASME B18.21.1, helical anti-vibration
Conical / Belleville (DIN 6796 / 2093) — preload maintenance
Hardness & Surface
Hastelloy B2 washers are hardness-controlled to balance load-distribution stiffness against surface damage to mating parts. Typical Vickers HV ranges: plain 140–180 HV; spring 380–440 HV; Belleville 460–540 HV. Surface finish Ra 1.6 µm or better; on critical sealing applications, Ra 0.8 µm available.
Special Patterns
TorqBolt produces Hastelloy B2 washers in square (DIN 436), fender (oversized OD), tab / lock-tang (DIN 462 / 463), and spherical seat washer + cup combinations. EN 10204 3.1 / 3.2 material certificates standard; NACE MR0175 / ISO 15156 on request.
Hastelloy — Ni-Cr-Mo / Ni-Mo Corrosion Alloys
Hastelloy is the trade designation for a family of nickel-chromium-molybdenum (and nickel-molybdenum) alloys formulated for severe wet-corrosion service: hydrochloric acid, sulfuric acid, chloride pitting, crevice corrosion, and sour wells.
Hastelloy C-276 (UNS N10276) is the workhorse: ~16% Cr, 16% Mo, 4% W gives unmatched resistance to oxidizing + reducing chloride media, the only nickel alloy resistant to wet chlorine + hypochlorite. Hastelloy C-22 (N06022) is upgraded with higher Cr for better oxidizing-acid performance. Hastelloy C-2000 (N06200) adds Cu for superior performance across the full pH range. Hastelloy B-3 (N10675) is Ni-Mo for hot HCl service. Hastelloy G-35 (N06035) targets phosphoric-acid plants.
Hastelloy fasteners ship per ASTM B574 / B575 (rod/bar/plate), with EN 10204 3.1 / 3.2 certification including PMI and intergranular-corrosion testing per ASTM G28. The ASTM A193 grade B14 + B7M designations cover Hastelloy bolting for ASME pressure-vessel use. NACE MR0175 / ISO 15156 sour-service compliance is standard. Welding requires matching filler metal (Ernicrmo-4 for C-276) with no post-weld solution anneal.
