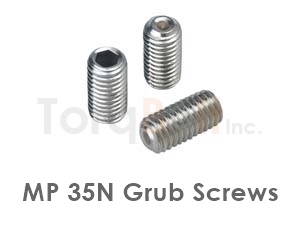

MP 35N Set Screws manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per DIN 913,DIN 914,DIN 915,DIN 916,DIN 551,DIN 553,DIN 438,BS 4301 are provided.
The raw material of these fasteners is further classified as super nickel alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. MP 35N Set Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Alloy Mp-35n Is A Nickel Based Cobalt Chromium Moly Alloy With Ultra High Tensile Strength And Excellent Corrosion Resistance. This Alloy Is Provided In Fully Hardened Condition.
Mp 35n Set screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures Mp 35n Set screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
Mp 35n Set screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
Mp 35n Set screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces Mp 35n Set set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
MP35N — Ni-Co-Cr-Mo Multiphase Alloy
MP35N (UNS R30035) is a multiphase nickel-cobalt-chromium-molybdenum alloy combining ultra-high tensile strength with outstanding corrosion resistance — positioned where Inconel 718 lacks sufficient corrosion resistance and Hastelloy C-276 lacks sufficient strength. The cold-work + age-hardening response yields tensile strength >2000 MPa with excellent fatigue and stress-corrosion performance.
The MP35N microstructure is a two-phase mix of fcc + hcp regions; specific cold-work reduction (40-50%) followed by ageing at 540-650°C transforms the matrix to deliver the alloy's signature combination of strength + corrosion resistance. Composition centers on ~35% Ni, 35% Co, 20% Cr, 10% Mo.
MP35N is the dominant material for sour-well wireline + casing bolting, downhole completion equipment, surgical implants requiring biocompatibility + fatigue strength, and high-pressure aerospace fasteners. The alloy is fully qualified to NACE MR0175 / ISO 15156 across the standard hardness range (up to ~52 HRC), making it one of the few materials capable of meeting both extreme-strength and sour-service criteria simultaneously.
MP35N fasteners are supplied per ASTM F562 / AMS 5844 / 5845 with EN 10204 3.2 third-party-witnessed certification including chemistry, mechanicals, hardness, fatigue, and stress-corrosion testing. Welding is generally avoided; mechanical joints with matching MP35N hardware are preferred.
