What material grade does Sa 182 F55 Super Duplex Fasteners use?

Sa 182 F55 Super Duplex Fasteners are manufactured per the applicable ASTM, ASME, DIN, or ISO specification for the material grade. TorqBolt provides material test certificates (MTC) per EN 10204 3.1 or 3.2 with every supply.

What sizes are available for Sa 182 F55 Super Duplex Fasteners?

TorqBolt manufactures Sa 182 F55 Super Duplex Fasteners in metric sizes M6 to M100 and imperial sizes 1/4" to 4" diameter, with custom lengths from 10mm to 3000mm. Non-standard sizes are available on request.

Are Sa 182 F55 Super Duplex Fasteners NACE MR0175 / ISO 15156 certified?

Yes, Sa 182 F55 Super Duplex Fasteners can be supplied with NACE MR0175 / ISO 15156-2/3 sour service certification when specified at order. Material certificates and test reports are provided.

What is the typical delivery time for Sa 182 F55 Super Duplex Fasteners?

Standard stock items ship in 1-2 weeks. Custom manufactured Sa 182 F55 Super Duplex Fasteners typically ship in 4-6 weeks depending on quantity, material availability, and certification requirements.

Do you provide third-party inspection for Sa 182 F55 Super Duplex Fasteners?

Yes, third-party inspection by TUV, Lloyd's Register, BV, DNV, SGS, and Intertek is available upon request for Sa 182 F55 Super Duplex Fasteners. Witness testing and stage inspections can be arranged.

Sa 182 F55 Super Duplex Fasteners Supplier

Sa 182 F55 Super Duplex Fasteners Specification

Sa 182 F55 Super Duplex Fasteners Heavy Hex Bolts Screws Studs Nuts Washers

SA 182 F55 is a forging grade of Alloy 32760 or UNS 32760 which is highly resistant to crevice corrosion and pitting alloy for variety of corrsives. It is 22% chromium duplex stainless steel. It shows very good ductillity and impact strength at ambient and subzero temperatures. Its properties makes it excellent fasteners in sour service industry.It is used in nitric acid processes. polypropelyn produstions, pvc productions, corn and vegitable processing plants. sewage treatment plants etc. It is also called as zeron 100 super duplex.Zeron 100 fasteners zeron 100 bolts , zeron 100 nuts and zeron 100 washers are amongst the hot products of TorqBolt Inc.

Sa 182 F55 Super Duplex Fasteners Properties

Equivalent Designation
ASTM/ASME	AISI	UNS	British Standard	Werkstoff No.	En Name	Swedish(SS)	JIS(SUS)
Sa 182 F55	–	S32760	–	1.4501	X2CrNiMoCuWN25-7-4	–	–

TorqBolt manufactures SA 182 F55 Super Duplex Fasteners via cold forging, hot forging and CNC machining. Sizes range from M1.0 to M100 (metric) and 1/16" to 4" (imperial). Available in coarse, fine, UNC, UNF, UN, BSW and acme threads with half, full or double-end thread configurations. Each SA 182 F55 Super Duplex Fasteners batch is supplied with EN 10204 3.1 or 3.2 material test certificates.

Hexagon Bolts

ANSI B18.2.1
ANSI B18.2.3.1M
DIN 931
DIN 933
BS 1768
UNI 5731
UNI 5737
UNI 5739
ISO 4014
ISO 4017
BS 1769
BS 3692

Socket/Slotted Set Screws

DIN 913
DIN 914
DIN 915
DIN 916
DIN 551
DIN 553
DIN 438
BS 4168

Socket/Slotted Countersunk Screws

DIN 963
DIN 7991
BS 4168
BS 1981
BS 483
BS 2470

Socket Cap Screws

ANSI B18.3
B18.3.1M
DIN 912
DIN 6912
DIN 7984
ANSI B18.3
ISO 4762
UNI 5931
BS 2470
BS 4168

Stud Bolts

ASME B18.2.1
DIN 976
DIN 938
DIN 939
DIN 2510
BS 4439
BS 2693
BS4882

Nuts

ANSI B18.2.2
ANSI B18.2.4.6M
DIN 934
DIN 936
BS 1768
BS 1769
BS 1083
BS 3692
ISO 4032
ISO 4033
ISO 4035
UNI 5587
UNI 5588
UNI 5589

Washers

ASME B18.22.1
ASTM F436
ISO 7089
DIN 125
DIN 9021
BS 4320
BS 3410
DIN 127
BS 4464
BS 1802
UNI 6952

Surface Treatments & Coatings

Electro Less Nickel Plating Electro Cadmium Plating Dacromet 320 500 Coating Pickled Passivated Fasteners Silver Plating Nickel Plating Electro Zinc Cobalt Plating Electro Zinc Nickel Plating Ptfe Fluorocarbon Coating Aluminizing Ceramic Filled Fluorocarbon Coating

Related Products

12 Point Flange Bolt Allen Screw Anchor Bolts Carriage Bolts Custom Bolts Draw Bolts Elevator Bolts Eye Bolts Flange Bolts Hanger Bolts Heavy Hex Head Bolts Hex Head Bolts J Bolts Lag Bolts Machine Bolts Plow Bolts Shoulder Bolts Step Bolts Stove Bolts Stud Bolts Tap Bolts U Bolts Double End Stud Bolts Full Threaded Studs Bolts Half Threaded Studs Bolts Tap End Studs 12 Point Flange Nuts Acorn Nuts Cap Nuts Castle Nuts Coupling Nuts Doomed Nuts Flange Lock Nuts Flex Lock Nuts Heavy Hex Nuts Hex Nuts High Nuts Jam Nuts Kep Nuts Nuts Nylon Lock Nuts Serrated Flange Nuts Slotted Nuts Square Nuts T Nut T Nuts Wing Nuts Belleville Washers Bowed Spring Washers Conical Spring Washers Countersunk Washers Curved Spring Washers Dock Washers Dome Tooth Washers Dome Washers External Lock Washers Fender Washers Finger Spring Washers Flat Washers Hex Washers Hexagonal Washers Internal Lock Washers Lock Washers Ogee Washers Plain Washers Split Lock Washers Spring Washers Square Washers Tab Washers Tooth Lock Washers Torque Washers Wave Spring Washers Zeron 100 Allen Screws Zeron 100 Eye Bolts Zeron 100 Set Screws Zeron 100 Screws Zeron 100 Hex Bolts Zeron 100 Bolts Zeron 100 Socket Cap Screws Zeron 100 U Bolts Zeron 100 Stud Bolts Zeron 100 Threaded Rod Zeron 100 Acorn Nuts Zeron 100 Coupling Nuts Zeron 100 Nuts Zeron 100 Hex Nuts Zeron 100 Jam Nuts Zeron 100 Nylon Lock Nuts Zeron 100 Square Nuts Zeron 100 Wing Nuts Zeron 100 Flat Washers Zeron 100 Lock Washers Zeron 100 Washers Zeron 100 Spring Washers Zeron 100 Flange Rings Zeron 100 Forged Rings Zeron 100 Rings

SA 182 F55 Super Duplex Fasteners — Material Overview & Form Factors

SA 182 F55 Super Duplex is a high-performance alloy used wherever standard fasteners cannot meet the corrosion, temperature, or strength envelope. TorqBolt manufactures the full SA 182 F55 Super Duplex fastener range — bolts, nuts, screws, washers, studs, and custom forgings — under one ISO 9001:2015 quality system, with PED 2014/68/EU module-H qualification for pressure-equipment service.

Where SA 182 F55 Super Duplex Excels

SA 182 F55 Super Duplex is specified in oil & gas wellhead components, refinery heat exchangers, petrochemical reactors, power-generation turbines, marine offshore platforms, and pharmaceutical / food-grade processing. Its corrosion resistance, high-temperature strength, and weldability make it the default for service conditions outside the carbon and standard-stainless envelope.

Form Factors Available

Bolts — hex, heavy hex, socket, button, countersunk; M6–M100 / 1/4"–4"

Nuts — standard, heavy, jam, locking variants (nyloc, all-metal, flange)

Screws — cap, machine, set, shoulder, self-tapping; all common drive types

Washers — plain, spring, lock, Belleville, fender, tab

Studs & threaded rod — ASTM A193 / A320 / A453 / A540

Custom forgings — rings, blanks, shaped components to drawing

Standards & Certification

SA 182 F55 Super Duplex fasteners are supplied with EN 10204 3.1 (mill cert) or 3.2 (third-party witnessed) material test reports as standard. Additional certification packages: NACE MR0175 / ISO 15156 (sour service), NORSOK M-650 (subsea / topside), API 6A (wellhead), API 20E (subsea bolting), PED 2014/68/EU (pressure equipment). Third-party inspection by TUV, Lloyd's, BV, DNV, SGS, and Intertek arrangeable on order.

Lead Time & Sizes

Stock items in standard SA 182 F55 Super Duplex fastener sizes ship in 1–2 weeks; custom-manufactured items in 4–6 weeks subject to material availability. Diameters M6–M100 and 1/4"–4", lengths 10 mm–3000 mm covered in-house; oversize / non-standard sizes quoted to specification.

Duplex & Super Duplex Stainless Steels

Duplex stainless steels have a roughly 50/50 ferrite-austenite microstructure, doubling the yield strength of austenitic 304/316 grades while improving chloride pitting + stress-corrosion resistance. Duplex is the modern default for offshore platform fasteners, desalination plants, and sour-gas piping where austenitics fail to chloride SCC and martensitics fail to hydrogen embrittlement.

Duplex 2205 (UNS S32205 / S31803) is the standard grade with PREN ~35, suitable for chloride-bearing service to ~250°C. Super Duplex 2507 (S32750) and Zeron 100 (S32760) push PREN to 41-42 with higher Cr+Mo+N, qualifying for the most aggressive seawater + sour-well environments. SA-182 F51 / F53 / F55 / F60 are the ASME forged-flange equivalents.

Phase balance is critical: ferrite content must stay within 35-65% in weld + HAZ to maintain corrosion + impact properties (ASTM A923 testing). Solution anneal at 1040-1100°C followed by water quench locks the duplex microstructure. Fasteners ship per ASTM A276 / A479 with EN 10204 3.1 / 3.2 certs including ferrite count and Charpy impact at -46°C. NACE MR0175 / ISO 15156 sour-service certification is standard.

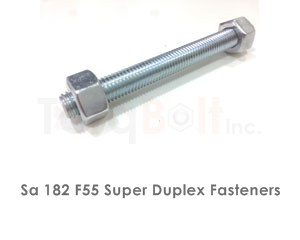

Sa 182 F55 Super Duplex Fasteners
