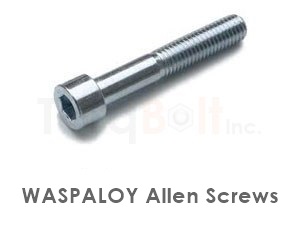

WASPALOY Allen Screws manufactured at TorqBolt are corrosion resistant,high temperature resistant with ultimate tensile strength.
Dimensional standards as per ANSI B18.3 ,B18.3.1M.DIN 912,DIN 6912,DIN 7984,ANSI B18.3,ISO 4762,UNI 5931,BS 2470,BS 4289 are provided.
The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. WASPALOY Allen Screws are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.
Waspaloy Allen Screws — Specifications & Dimensions
Waspaloy Allen screws are externally threaded fasteners typically driven into a tapped hole or self-tapped material. TorqBolt manufactures Waspaloy Allen screws per ASME B18.3 (socket products), ASME B18.6.3 (machine screws), DIN 912 / 7991 / 6912, and ISO 4762 / 10642, in metric M3–M48 and imperial 0–1/2".
Drive Types
Hex socket (Allen) — ASME B18.3 / DIN 912, primary for high-torque industrial use
Waspaloy Allen screws are available in cap (cylindrical), button (low-profile dome), countersunk / flat (82° or 90°), pan, fillister, truss, and shoulder configurations. Countersunk per DIN 7991 with 90° head angle is standard for metric; 82° per ASME B18.6.3 for imperial.
Thread & Length
Waspaloy Allen screws use full-thread or partial-thread (length-under-head) configurations. Machine screws are typically full-thread; cap screws use partial thread for grip control. Threading per ASME B1.1 (UNC/UNF) or ISO 965 (metric coarse/fine), Class 2A or 6g default. Length-under-head is measured from the bearing surface for hex/cap, from the largest face for countersunk. Custom lengths quoted to drawing.
Specialty Screws
TorqBolt produces Waspaloy Allen set screws (cup-point, cone-point, dog-point, flat-point, hex-socket DIN 913/914/915/916), shoulder screws (precision-ground shoulder for pivot applications), and self-tapping screws (Type AB, Type 25). All certified per EN 10204 3.1 / 3.2 with optional NACE MR0175 sour-service compliance.
Specialty Fastener Alloys
TorqBolt manufactures specialty fasteners across the full range of corrosion-resistant alloys (CRAs), high-temperature superalloys, and engineered metallurgies required by the process industries. Beyond the high-volume Inconel, Hastelloy, Duplex, and stainless grades, our supply chain covers a long tail of specification-driven alloys for unique service envelopes — sour wells, extreme cryogenics, pharmaceutical-grade purity, oxidizing acids, chlorinated solvents, and high-temperature cyclic-load fasteners.
Each specialty alloy is sourced from approved mills with full melt traceability through a closed forging route. Heat-treat condition, mechanical properties, and corrosion testing are controlled to the customer's drawing or governing specification — whether ASTM, ASME, AMS, MIL, NORSOK, NACE, or proprietary end-user codes. EN 10204 3.1 (mill cert) or 3.2 (third-party witnessed) material test certificates are issued with every lot, listing chemistry, mechanicals at relevant test temperatures, hardness, dimensional inspection, and any corrosion or NDT test results required.
Third-party inspection by TUV, Lloyd's, BV, DNV, SGS, and Intertek is arrangeable. NACE MR0175 / ISO 15156 sour-service qualification, NORSOK M-650 mill qualification, API 6A wellhead bolting, API 20E subsea bolting, and PED 2014/68/EU pressure-equipment compliance available across the alloy range as the application demands.
