What material grade does Waspaloy Spring Washers use?

Waspaloy Spring Washers are manufactured per the applicable ASTM, ASME, DIN, or ISO specification for the material grade. TorqBolt provides material test certificates (MTC) per EN 10204 3.1 or 3.2 with every supply.

What sizes are available for Waspaloy Spring Washers?

TorqBolt manufactures Waspaloy Spring Washers in metric sizes M6 to M100 and imperial sizes 1/4" to 4" diameter, with custom lengths from 10mm to 3000mm. Non-standard sizes are available on request.

Are Waspaloy Spring Washers NACE MR0175 / ISO 15156 certified?

Yes, Waspaloy Spring Washers can be supplied with NACE MR0175 / ISO 15156-2/3 sour service certification when specified at order. Material certificates and test reports are provided.

What is the typical delivery time for Waspaloy Spring Washers?

Standard stock items ship in 1-2 weeks. Custom manufactured Waspaloy Spring Washers typically ship in 4-6 weeks depending on quantity, material availability, and certification requirements.

Do you provide third-party inspection for Waspaloy Spring Washers?

Yes, third-party inspection by TUV, Lloyd's Register, BV, DNV, SGS, and Intertek is available upon request for Waspaloy Spring Washers. Witness testing and stage inspections can be arranged.

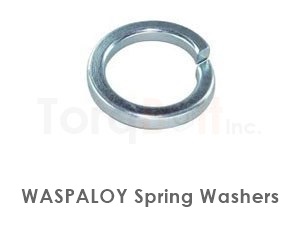

Waspaloy Spring Washers

Name: Waspaloy Spring Washers
Brand: TorqBolt
SKU: TB-WASPALOYSPRINGWASHERS
Availability: InStock

You are here:

Waspaloy Spring Washers Specification

The raw material of these fasteners is further classified as Super Nickel Alloys. Being a PED certified Fasteners Manufacturer by TUV Rheinland,our fasteners are accompanied with EN 10204 3.1/3.2 certification. WASPALOY Spring Washers are available in hot forged,cold forged and bar stock machined conditions depending upon the order quantity.

WASPALOY Equivalent Designation

UNS Designation	British STD	Werkstoff No.	European STD	Swedish STD	Japanese STD
–	–	2.4654	–	–	–

Surface Treatments & Coatings

Electro Zinc Plating Hot Dip Galvanizing Ptfe Fluorocarbon Coating Aluminizing Ceramic Filled Fluorocarbon Coating Nickel Plating Mechanical Zinc Coating Electro Zinc Cobalt Plating Electro Zinc Nickel Plating Phosphate Coating Electro Less Nickel Plating Electro Cadmium Plating Dacromet 320 500 Coating Pickled Passivated Fasteners Silver Plating

Waspaloy Spring Washers — Specifications & Dimensions

Waspaloy Spring washers distribute clamp load over a wider bearing area, prevent surface damage, and accommodate bolt-hole oversize. TorqBolt manufactures Waspaloy Spring washers per ASME B18.21.1 / B18.22.1, DIN 125 / 126 / 127 / 9021, and ISO 7089 / 7090 / 7093 / 7094, in metric (M3–M100) and imperial (#4–4") sizes.

Plain Washer Dimensions

Waspaloy Spring plain washers are characterized by three critical dimensions: ID (clearance over bolt diameter), OD (load distribution area), and thickness (compressive stiffness). Standard tolerances are h13 on OD and H13 on ID per ISO 286-2; flatness 0.05 mm/100 mm and parallelism 0.05 mm/100 mm verified per lot. Edge break / chamfer per drawing.

Form Variants

Form A (regular) — DIN 125-A / ISO 7089, the default plain washer
Form B (large OD) — DIN 9021 / ISO 7093, for soft mating surfaces
Form C (heavy) — DIN 7349 / ISO 7094, for slotted holes / structural use
Spring (split) — DIN 127 / ASME B18.21.1, helical anti-vibration
Tooth lock (internal / external) — DIN 6797 / 6798, anti-rotation
Conical / Belleville (DIN 6796 / 2093) — preload maintenance

Hardness & Surface

Waspaloy Spring washers are hardness-controlled to balance load-distribution stiffness against surface damage to mating parts. Typical Vickers HV ranges: plain 140–180 HV; spring 380–440 HV; Belleville 460–540 HV. Surface finish Ra 1.6 µm or better; on critical sealing applications, Ra 0.8 µm available.

Special Patterns

TorqBolt produces Waspaloy Spring washers in square (DIN 436), fender (oversized OD), tab / lock-tang (DIN 462 / 463), and spherical seat washer + cup combinations. EN 10204 3.1 / 3.2 material certificates standard; NACE MR0175 / ISO 15156 on request.

Specialty Fastener Alloys

TorqBolt manufactures specialty fasteners across the full range of corrosion-resistant alloys (CRAs), high-temperature superalloys, and engineered metallurgies required by the process industries. Beyond the high-volume Inconel, Hastelloy, Duplex, and stainless grades, our supply chain covers a long tail of specification-driven alloys for unique service envelopes — sour wells, extreme cryogenics, pharmaceutical-grade purity, oxidizing acids, chlorinated solvents, and high-temperature cyclic-load fasteners.

Each specialty alloy is sourced from approved mills with full melt traceability through a closed forging route. Heat-treat condition, mechanical properties, and corrosion testing are controlled to the customer's drawing or governing specification — whether ASTM, ASME, AMS, MIL, NORSOK, NACE, or proprietary end-user codes. EN 10204 3.1 (mill cert) or 3.2 (third-party witnessed) material test certificates are issued with every lot, listing chemistry, mechanicals at relevant test temperatures, hardness, dimensional inspection, and any corrosion or NDT test results required.

Third-party inspection by TUV, Lloyd's, BV, DNV, SGS, and Intertek is arrangeable. NACE MR0175 / ISO 15156 sour-service qualification, NORSOK M-650 mill qualification, API 6A wellhead bolting, API 20E subsea bolting, and PED 2014/68/EU pressure-equipment compliance available across the alloy range as the application demands.
