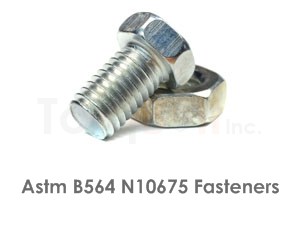

Astm B564 N10675 Fasteners Specification
Astm B564 N10675 Fasteners Properties
| Chemical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V |
| 0.01 Max | 3.0 Max | 0.030 Max | 0.010 Max | 0.10 Max | 1.0-3.0 | 27.0-32.0 | 65.0 Min | 0.20 Max | 0.20 Max |
| Cb | Ti | Al | W | Co | Ta | Fe | Zr | Ni+Mo | |
| 0.20 Max | 0.20 Max | 0.50 Max | 3.0 Max | 3.0 Max | 0.20 Max | 1.0-3.0 | 0.10 Max | 94.0-98.0 | |
| Mechanical Properties | ||
|---|---|---|
| Yeild strength | Tensile strength | Elongation |
| Mpa | Mpa | % |
| min | min | min |
| 350 | 760 | 40 |
| Heat Treatment | |||
|---|---|---|---|
| Solution Annealed @ 1080°C & Liquid Quenched | |||
| Equivalent Designation | ||
|---|---|---|
| UNS N10675 | ||
| EN number | ||
| EN Name | ||
| W.Nr. 2.4600 | ||
| SS | ||
| AFNOR | ||
Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.
Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.
Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.
Hexagon Bolts
- ANSI B18.2.1
- ANSI B18.2.3.1M
- DIN 931
- DIN 933
- BS 1768
- UNI 5731
- UNI 5737
- UNI 5739
- ISO 4014
- ISO 4017
- BS 1769
- BS 3692
Socket/Slotted Set Screws
- DIN 913
- DIN 914
- DIN 915
- DIN 916
- DIN 551
- DIN 553
- DIN 438
- BS 4168
Socket/Slotted Countersunk Screws
- DIN 963
- DIN 7991
- BS 4168
- BS 1981
- BS 483
- BS 2470
Socket Cap Screws
- ANSI B18.3
- B18.3.1M
- DIN 912
- DIN 6912
- DIN 7984
- ANSI B18.3
- ISO 4762
- UNI 5931
- BS 2470
- BS 4168
Stud Bolts
- ASME B18.2.1
- DIN 976
- DIN 938
- DIN 939
- DIN 2510
- BS 4439
- BS 2693
- BS4882
Nuts
- ANSI B18.2.2
- ANSI B18.2.4.6M
- DIN 934
- DIN 936
- BS 1768
- BS 1769
- BS 1083
- BS 3692
- ISO 4032
- ISO 4033
- ISO 4035
- UNI 5587
- UNI 5588
- UNI 5589
Washers
- ASME B18.22.1
- ASTM F436
- ISO 7089
- DIN 125
- DIN 9021
- BS 4320
- BS 3410
- DIN 127
- BS 4464
- BS 1802
- UNI 6952
