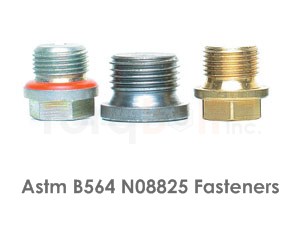

Astm B564 N08825 Fasteners Specification
Astm B564 N08825 Fasteners Properties
| Chemical Properties | |||||
|---|---|---|---|---|---|
| C | Mn | S | Si | Cr | Mo |
| 0.05 Max | 1.0 Max | 0.03 Max | 0.5 Max | 19.5-23.5 | 2.5-3.5 |
| Ni | Cu | Ti | Al | Fe | |
| 38.0-46.0 | 1.5-3.0 | 0.6-1.2 | 0.2 Max | 22.0 Min | |
| Mechanical Properties | ||
|---|---|---|
| Yeild strength | Tensile strength | Elongation |
| Mpa | Mpa | % |
| min | min | min |
| 241 | 586 | 30 |
| Heat Treatment | ||||
|---|---|---|---|---|
| Solution Annealed @ 1080°C & Liquid Quenched | ||||
| Equivalent Designation | ||
|---|---|---|
| UNS N08825 | ||
| EN number NiFe30Cr21Mo3 | ||
| EN Name | ||
| W.Nr. 2.4858 | ||
| SS | ||
| AFNOR | ||
Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.
Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.
Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.
Hexagon Bolts
- ANSI B18.2.1
- ANSI B18.2.3.1M
- DIN 931
- DIN 933
- BS 1768
- UNI 5731
- UNI 5737
- UNI 5739
- ISO 4014
- ISO 4017
- BS 1769
- BS 3692
Socket/Slotted Set Screws
- DIN 913
- DIN 914
- DIN 915
- DIN 916
- DIN 551
- DIN 553
- DIN 438
- BS 4168
Socket/Slotted Countersunk Screws
- DIN 963
- DIN 7991
- BS 4168
- BS 1981
- BS 483
- BS 2470
Socket Cap Screws
- ANSI B18.3
- B18.3.1M
- DIN 912
- DIN 6912
- DIN 7984
- ANSI B18.3
- ISO 4762
- UNI 5931
- BS 2470
- BS 4168
Stud Bolts
- ASME B18.2.1
- DIN 976
- DIN 938
- DIN 939
- DIN 2510
- BS 4439
- BS 2693
- BS4882
Nuts
- ANSI B18.2.2
- ANSI B18.2.4.6M
- DIN 934
- DIN 936
- BS 1768
- BS 1769
- BS 1083
- BS 3692
- ISO 4032
- ISO 4033
- ISO 4035
- UNI 5587
- UNI 5588
- UNI 5589
Washers
- ASME B18.22.1
- ASTM F436
- ISO 7089
- DIN 125
- DIN 9021
- BS 4320
- BS 3410
- DIN 127
- BS 4464
- BS 1802
- UNI 6952
