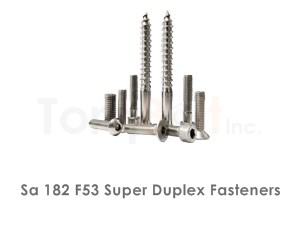

Sa 182 F53 Super Duplex Fasteners Specification

Sa 182 F53 Super Duplex Fasteners Heavy Hex Bolts Screws Studs Nuts Washers
TorqBolt manufactures high strength Sa 182 F53 Super Duplex Fasteners.

SA 182 F53 is a forging grade of Alloy 32750 or UNS 32750 and it is same as alloy 2507. Alloy 2507 is a super duplex steel containing 25% chromium, 4% molybdenum, 7% nickel designed for demanding applications which require high strength. It has outstanding resistance for pitting and crevice corrosion in sea waters and thus it has number of applications in marine Industry. It is advisable not to use this type of alloy for temperatures ranging higher than 300 Degrees celciuos. it is mainly used in oil and gas industry, offshore platforms, heat exchangers, vessels and high pressure RO plants. It has a very good weldeabillity, it can joined to itself or other material.

Sa 182 F53 Super Duplex Fasteners Properties

Chemical Properties
CMnPSSiCrNIMoCuN
0.03 Max1.20 Max0.04 Max0.02 Max0.80 Max24.0-26.06.0-8.03.0-5.00.50 Max0.24-0.32

Mechanical Properties
Yeild strengthTensile strengthElongationHardness
MpaMpa%BHN
minminmin
55080015310

Physical Properties
DensityElastic ModulusMean Coefficient of ThermalThermal ConductivitySpecific HeatElectrical Resistivity
(Kg/m3)(Gpa)Expansion(?m/m/°C)(W/m.K)0-100°C(µ?.m)
781019911.1 X10-614.24750.8

Heat Treatment
Solution Annealed @1020°C & liquid Quenced @260°C

Equivalent Designation
ASTM/ASMEAISIUNSBritish StandardWerkstoff No.En NameSwedish(SS)JIS(SUS)
Sa 182 F53–S32750–1.4410X2CrNiMoN25-7-42328–

Cold Forged Fasteners, Hot Forged Fastener, C-Machined Components / Fasteners, CNC Machined Components / Fasteners, Custom Machined Components / Fasteners, Threaded Components / Fasteners, Non-Threaded Components / Fasteners, Bar Stock Machined Components / Fasteners.

Metric Range from M1.0 to M100 and Imperial Range from 1/16 inch to 4 inch.

Coarse, Fine, UNC, UNF, UN, BSW, Acme Threads with Half Thread, Full Thread & Double End Thread Configuration.

Hexagon Bolts

  • ANSI B18.2.1
  • ANSI B18.2.3.1M
  • DIN 931
  • DIN 933
  • BS 1768
  • UNI 5731
  • UNI 5737
  • UNI 5739
  • ISO 4014
  • ISO 4017
  • BS 1769
  • BS 3692

Socket/Slotted Set Screws

  • DIN 913
  • DIN 914
  • DIN 915
  • DIN 916
  • DIN 551
  • DIN 553
  • DIN 438
  • BS 4168

Socket/Slotted Countersunk Screws

  • DIN 963
  • DIN 7991
  • BS 4168
  • BS 1981
  • BS 483
  • BS 2470

Socket Cap Screws

  • ANSI B18.3
  • B18.3.1M
  • DIN 912
  • DIN 6912
  • DIN 7984
  • ANSI B18.3
  • ISO 4762
  • UNI 5931
  • BS 2470
  • BS 4168

Stud Bolts

  • ASME B18.2.1
  • DIN 976
  • DIN 938
  • DIN 939
  • DIN 2510
  • BS 4439
  • BS 2693
  • BS4882

Nuts

  • ANSI B18.2.2
  • ANSI B18.2.4.6M
  • DIN 934
  • DIN 936
  • BS 1768
  • BS 1769
  • BS 1083
  • BS 3692
  • ISO 4032
  • ISO 4033
  • ISO 4035
  • UNI 5587
  • UNI 5588
  • UNI 5589

Washers

  • ASME B18.22.1
  • ASTM F436
  • ISO 7089
  • DIN 125
  • DIN 9021
  • BS 4320
  • BS 3410
  • DIN 127
  • BS 4464
  • BS 1802
  • UNI 6952
